Invacare Chasswheel Four X DL

Click any thumbnail to view gallery.

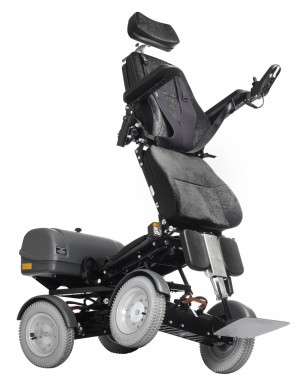

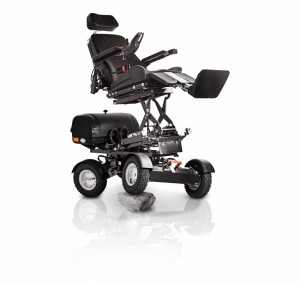

Invacare Chasswheel Four X DL

Advanced four wheel drive and efficient shock absorption

Prices from: £12,690.00 Exc. VAT
£15,228.00 Inc. VAT

Delivery time: 3-4 weeks
The crash test symbol indicates that this chair has been tested for use in a vehicle to ISO7176-19 accreditation or similar.
  • Description
  • Details
  • Specification
  • Documents


The Chasswheel Four X DL has a sturdy yet flexible chassis, advanced four wheel drive and efficient shock absorption offering a supremely comfortable ride. The four wheels form a solid base enabling smooth movement even on challenging surfaces. Everyday obstacles such as curbs or even out in the woods, will prove no issue on your travels. Even sand or snow will not hold you back! The advanced steering system also offers excellent manoeuvrability in confined spaces, so this versatile power chair can take you from the office, around town or out on an active weekend with ease.
Additional features include seat tilt, balance adjustment, leg and arm rest adjustments and with the option of lift or stand support, the Chasswheel Four X DL can provide a more tailored ride. The Chasswheel Four X DL has been expertly assembled using quality parts and due to the sturdy build quality comes with a 10 year warranty for peace of mind.

With a speed of 10 km/h and maximum range of 41 km over mixed terrain the The Chasswheel Four X DL offers you a whole new realm of freedom.

  • Four X DL CW 4 electric wheelchair
  • Batteries, (73A x 2) and battery charger included
  • Dynamic DX2‐550 Driving Control
  • AMT motors (4 x 250W)
  • Wheels: 6” or 8”
  • Seat: CW or Recaro mechanical, including headrest
  • Manual footrest + foot plate
  • Any colour plastic parts
  • Safety Belt, hip model
  • Armrest + cushion
  • LED Lights and indicators complete
  • Mud guards complete
  • Gravity point adjustment
  • TILT
  • 4 wheel drive
  • Speed 10 km/h (6mph)
  • Driving distance: 40 Km
For more information, please refer to the Brochures located under the Documents tab. We would highly recommend experiencing the Chasswheel Four X DL first hand to truly appreciate its versatility and smooth driving over the roughest of grounds. Please contact us to organise a demonstration or for us to answer any questions you may have.


Brand: Invacare

Product Code: FourXDL


Width: 695 mm
Height (normal seating position without headrest): 700-850 mm
Length: 1250 mm (footrest down)
Weight With Battery: 140 kg / Four X DL Lift 170 kg / Four X DL SSS 170 kg
Max Speed: 10 km/h
Batteries: 4 x 250w
Max User Weight: 125 kg (160 kg with HD kit)
Seat Width: 400-480 mm
Seat Depth: 390-510 mm
Backrest Height: 500-600 mm
Ground Clearance: 6" tyres 100 mm / 8" 120 mm
Slope Climbing Capacity: 20°
Max Obstacle Climbing Ability: 150 mm
Seating Height Without Cushions: 6" tyres - Four X DL 440 mm / Four X Lift 530 mm / Four X SSS 530 mm
8" tyres: Four X DL 465 mm / Four X Lift 555 mm / Four X SSS 555mm
Gravity Point Adjustment: 250 mm
Tilt Angle: 30°
Footrest Angle: 80°
Backrest Angle: 84°-125°
Turning Radius: 1.15 m


VAT Exemption may be claimed for this item*.
For products that can be purchased online, simply add the product to your shopping basket and claim exemption when you review your basket, before you check out. Or, for products that cannot be purchased online, claim when specifying your requirements.
(*subject to status)
