Seat Width
35.5 to 48 cmSeat Depth
36 to 54 cmSeat Height
38 to 55 cmBack Angle
30°Total Weight
12 kgMax User Weight
125 kgPrices from:
£1,457.00 exVAT£1,748.40 incVAT
£1,457.00 exVAT£1,748.40 incVAT
Product code: OttoMotusCV2
Approximate Delivery Date
24th Jun
24th Jun
Configure
Price including selected options: £1,457.00 exVAT (£1,748.40 incVAT).
* All orders will be checked prior to processing.
See more
Secure, stable and reliable, with swing-away footplates
Seat Width
35.5 to 48 cmSeat Depth
36 to 54 cmSeat Height
38 to 55 cmBack Angle
30°Total Weight
12 kgMax User Weight
125 kgRelated Products
Description

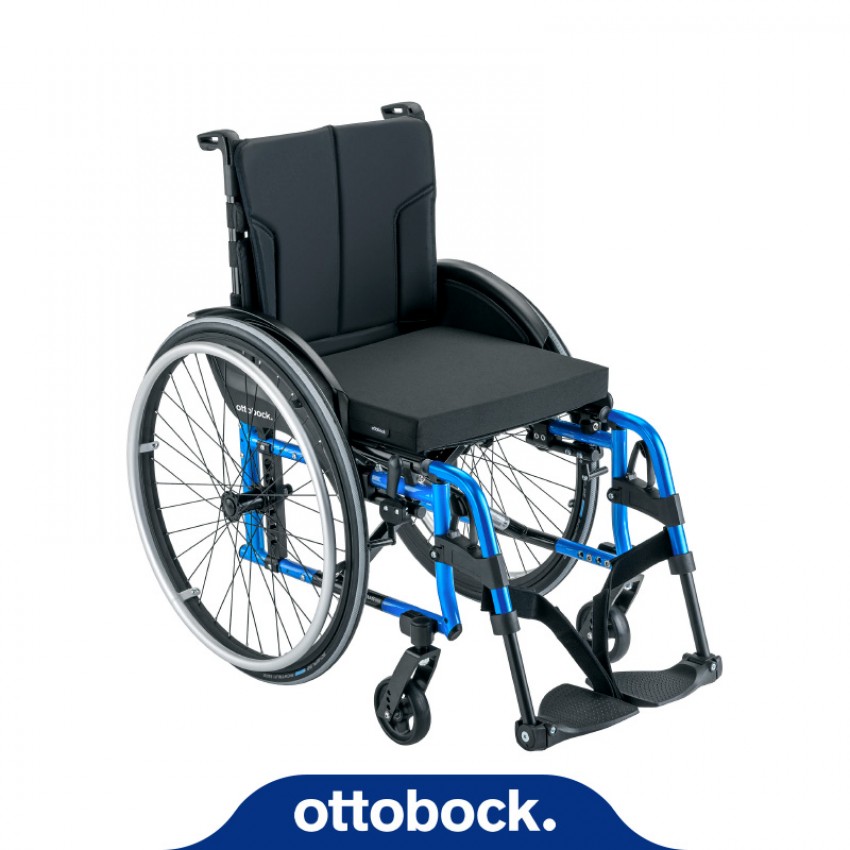

Reliable and practical, the Ottobock Motus CV features a proven internal crossbrace folding mechanism and a readily customisable specification (including optional wheelbase extension). Aluminium construction, side panels to protect clothing from the wheels and breathable backrest upholstery are among the small refinements that make the Motus CV an all round performer. Swing-away footplates allow for easy transfers as well as better access in front of the wheelchair and foot propulsion.
The optional half-folding seat back folds forward to reduce the overall height of the chair and makes the Motus CS especially convenient for travelling and allows for compact storage.
The Motus CV employs swing-away foot supports. For integrated/fixed foot supports see the Ottobock Motus CS.
Want to meet your ideal chair? Click 'Enquire Now' above to speak to our specialist fitting team.
- Lightweight Aluminium construction
- Integrated Foot Supports
- Reliable and robust folding mechanism
Specification
* All size measurements in centimetres (cm)
Seat Width: 35.5 / 38 / 40.5 / 43 / 45.5 / 48
Seat Depth: 36 / 38 / 40 / 42 / 44 / 46 / 48 / 50 / 52 / 54
Seat Height:
38 to 55 (in increments of 1) (Front)
36 to 52 (in increments of 1) (Rear)
Backrest Height:
30 to 50 (Straight) (Options Dependent)
35 to 50 (8° Lumbar Curve) (Options Dependent)
Backrest Angle:
0° (Standard, Fixed)
8° (Standard, Fixed)
0° to 30° (Adjustable) (Optional)
Front Frame Angle: 70° / 80°
Footplate Distance: 34 to 41 / 41 to 51 / 47 to 55
Camber: 0° / 2° / 3° / 4°
Maximum User Weight: 125 kg
Total Length: 81 to 116 (Options Dependent)
Total Width: Seat Width + 20cm approx (with 0° camber)
Total Height: 67 to 110 (Options Dependent)
Total Weight: 12 kg approx
Folded Dimensions:
Encumbrance (minimum width when folded): 27 to 33, depending on options (with 0° camber)
Warranty: 2 years
Documentation
You may not have to pay VAT on this item (*Subject to status)
Simply add the product to your shopping basket and fill out the zero-rated VAT form when you checkout. If you require any assistance please give us a call on 0808 2959 909.
Simply add the product to your shopping basket and fill out the zero-rated VAT form when you checkout. If you require any assistance please give us a call on 0808 2959 909.
The crash test symbol indicates that this chair has been tested for use in a vehicle to ISO7176-19 accreditation or similar.
