Description

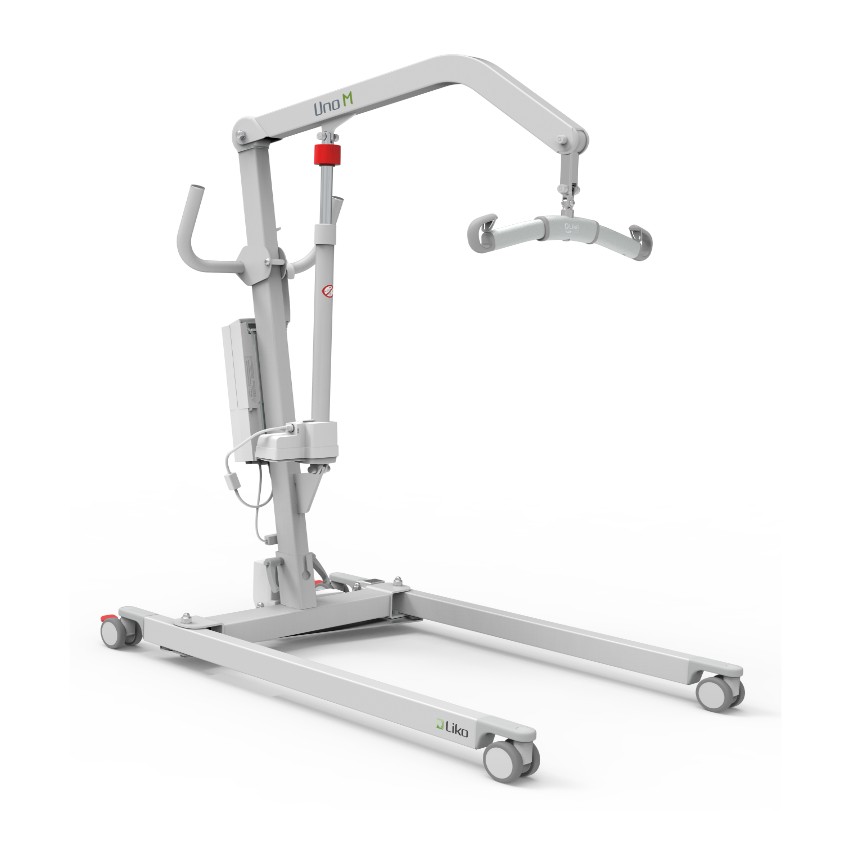

The Baxter Uno M hoist is a compact, electric medical hoist designed for safe, everyday patient transfers. It is highly maneuverable in tight spaces like bathrooms and bedrooms, supporting transfers between beds, wheelchairs, toilets, and the floor.
Specification
Maximum load 182 kg (400 lb)
Weight Uno M lift (excl sling bar, battery, charging cable) 36.9 kg (81.2 lb)
Height 1333 to 2002 mm (52.5 to 78.8")
Protection class (Lift & Pendant) IP 24
Slingbar options Standard
Universal SlingBar 450 (450 mm)
Optional
Universal SlingBar 350, 600
Universal TwinBar 670
Universal SideBars 450
Sling Cross-bar 450, 670
Base
Height: 104 mm (4.7")
Length: 1220 mm (48")
Width: 681 - 1141 mm (26.8 - 44.9")
Base-width expansion - Electric
Casters: Front 75 mm (3") twin casters Rear 75 mm (3") twin casters with brakes
Material - Powder coated steel
Emergency lowering - Manual and electric
Lifting Speed (no load) - 33 mm/s (1.3 in/s)
Maximum lifting height - 1783 mm (70.2")
Lifting interval - 1297 mm (51.1")
Sound Level (max load) - 51.7 dB
Batteries
Lead-acid gel, valve-regulated battery - 24 V 2.9 Ah
Prod. No. 2006106 Li-ion, Lithium Iron Phosphate
(LiFePO4) 25.6 V 3.3 Ah Prod. No. 2006110
Weight
Battery lead-acid gel: 2.8 kg (6.2 lb)
Battery Li-ion: 1.5 kg (3.3 lb)
Charger Built-in
