Seat Width
32 to 50 cmSeat Depth
35 to 52.5 cmSeat Height
45 to 52 cmBack Angle
-16° to 4°Total Weight
7.8 kgMax User Weight
130 kg
Iconic, Lightweight, Active, Adjustable
Seat Width
32 to 50 cmSeat Depth
35 to 52.5 cmSeat Height
45 to 52 cmBack Angle
-16° to 4°Total Weight
7.8 kgMax User Weight
130 kgRelated Products
Description

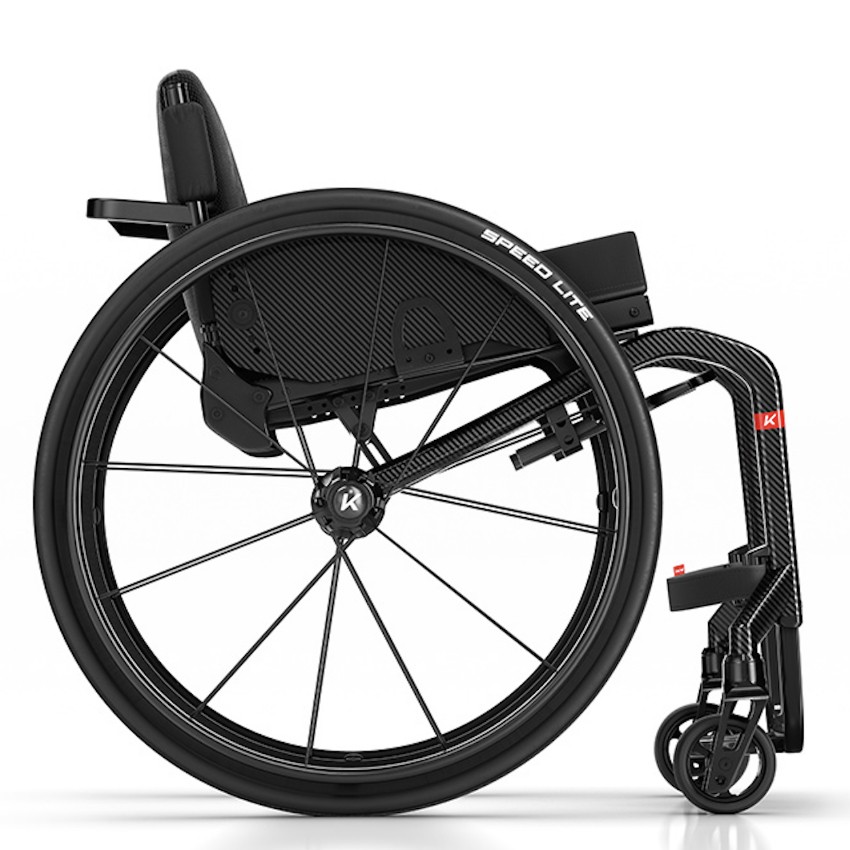

The iconic single-tube, open-frame design of the Kuschall K-Series Carbon is instantly recognisable and offers a number of unique benefits. Using fewer frame tubes reduces weight, making the K-Series one of the lightest rigid wheelchairs available. The independent seat module is highly adjustable, allowing the seating position to be tailored to the individual user.
A tapered, hydroformed front frame with ergonomic grips assists with transfers and repositioning. Lightweight aluminium brakes with a minimal design reduce overall weight while maintaining a sleek appearance. The folding padded backrest provides additional comfort and versatility, while the seat module offers five centre of gravity positions.
The K-Series 2.0 Carbon features a folding backrest that locks onto the seat for transportation and can be adjusted in height and angle when in use. A smooth, rounded brace bar behind the seat provides additional support when reaching around the chair and makes accessing the rear seat pocket easier.
Optional suspension improves comfort for users weighing up to 100kg.
With its lightweight aluminium frame, the K-Series 2.0 delivers excellent driving performance and is ideal for an active lifestyle
Specification
All size measurements in centimetres (cm)
Seat Width: 32 / 34 / 36 / 38 / 40 / 42 / 44 / 46 / 48 / 50
Seat Depth: 35 / 37.5 / 40 / 42.5 / 45 / 47.5 / 50 / 52.5
Seat Height:
45 to 52 (in increments of 1) (Front)
39 to 49 (in increments of 1) (Rear)
Backrest Height: 27 to 48 (in increments of 1.5)
Backrest Angle: -4° / 0° / 4° / 8° / 12° / 16°
Front Frame Angle: 75° / 90°
Footplate Distance: 29 to 48 (in increments of 1)
Camber:
0° / 3° / 6° (Standard)
1° / 3° / 7° / 10° (Adjustable) (Vario-Axle) (Optional)
Maximum User Weight: 130kg
Total Length:
76 approx (90° front frame)
83 approx (75° front frame)
Total Width: Seat Width + 17cm (with 0° camber)
Warranty: 5 years frame, 2 years parts
Documentation
You may not have to pay VAT on this item (*Subject to status)
Simply add the product to your shopping basket and fill out the zero-rated VAT form when you checkout. If you require any assistance please give us a call on 0808 2959 909.
Simply add the product to your shopping basket and fill out the zero-rated VAT form when you checkout. If you require any assistance please give us a call on 0808 2959 909.
The crash test symbol indicates that this chair has been tested for use in a vehicle to ISO7176-19 accreditation or similar.
